Reinforcement steel grade, Steel Rebar, B500B & Bar Rolling Mill Process

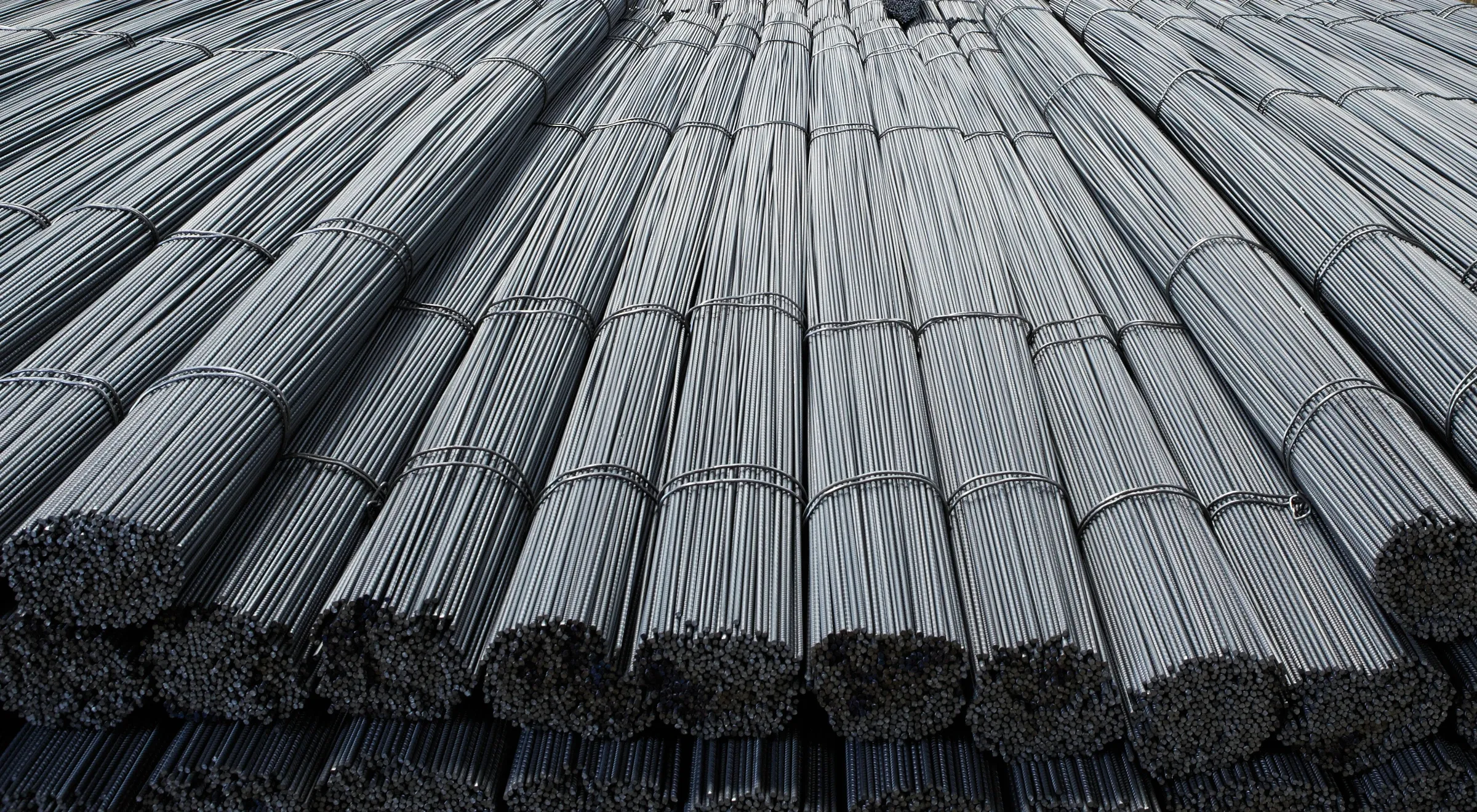

Rebar

Weldable, sustainable reinforcing steel featuring improved bonding and high ductility, low carbon contents, packaged in bars, available in the range of diameters 8-32 mm, hot rolled and Water Cooled or Air Cooled (for Grade 40 and 60 ASTM 615).

Product characteristics

High bonding;
No axial torsion;
Reduced surface oxidation, giving greater weight yield and enhanced cleanliness.

Distinctive elements

Optimisation of production parameters in view of obtaining all products in class C - high ductility, guaranteeing:

Optimal mechanical properties for seismic and other applications;
Improved packaging for subsequent operations;
ICMQ ECO Gold sustainability label;
LEED credits;
Recycled content certification.

Chemical composition

The weldability of our rebars is guaranteed by the chemical analysis of the heats and the equivalent carbon content.

max. C %	max. P %	max. S %	max. Cu %	max. N %	max. Ceq
0,22	0,050	0,050	0,80	0,012	0,50
(0,24)	(0,055)	(0,055)	(0,85)	(0,014)	(0,52)

The figures in brackets refer to product analysis

Range of dimensions

Diameters: 8-32 mm
Length: 6-18 m

Weight and packaging

Bundle weight:

12 m ~ 2300 kg
6 m ~ 1400 kg

Packaging:

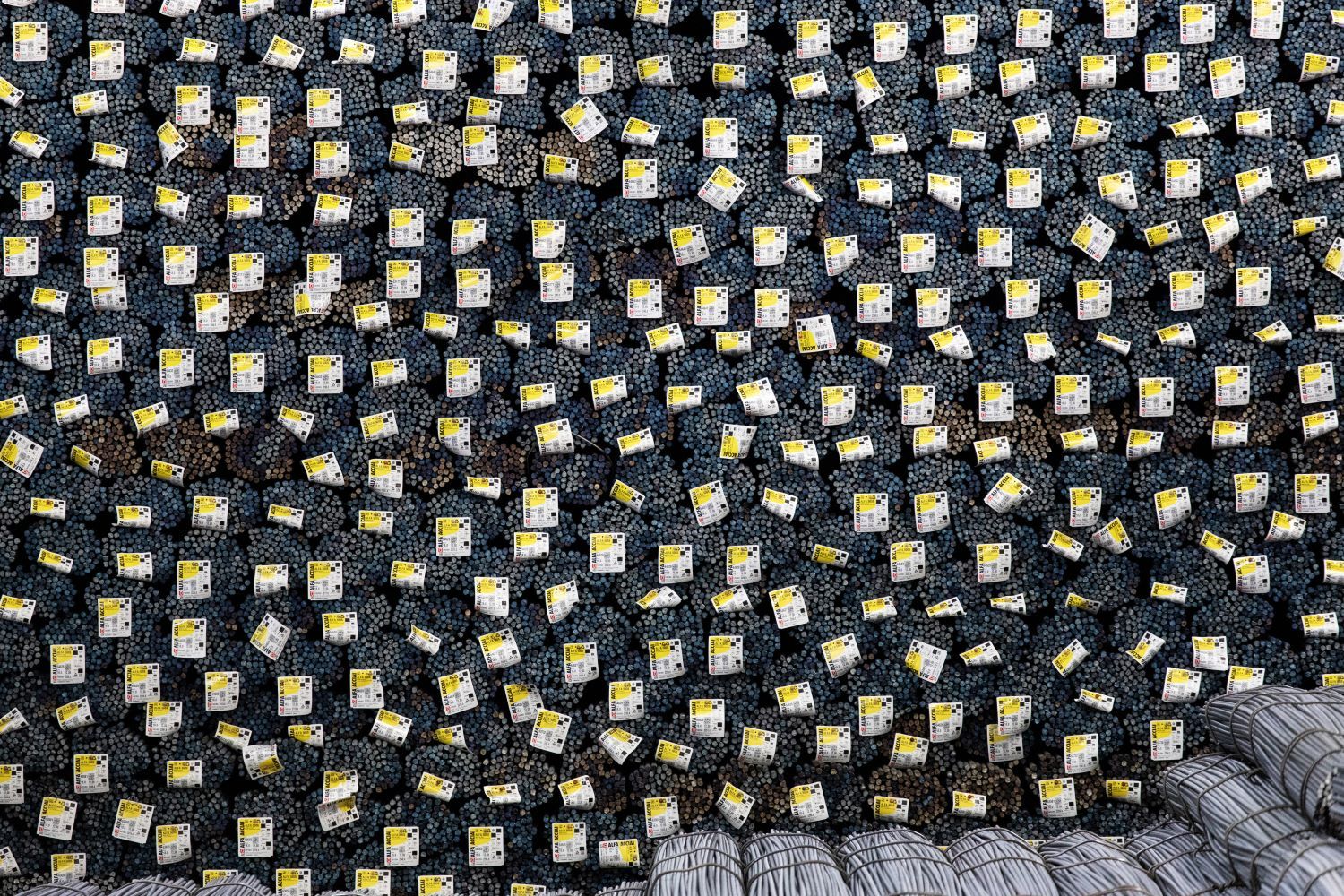

Bars packed in bundles

Bundle length:

< 9 m / fastened in 5 positions
9 to 14 m / fastened in 7 positions
15 m / fastened in 9 positions
16 to 18 m / fastened in 11 positions

* Double fastening with 7 mm-diameter wire rod

Labelling

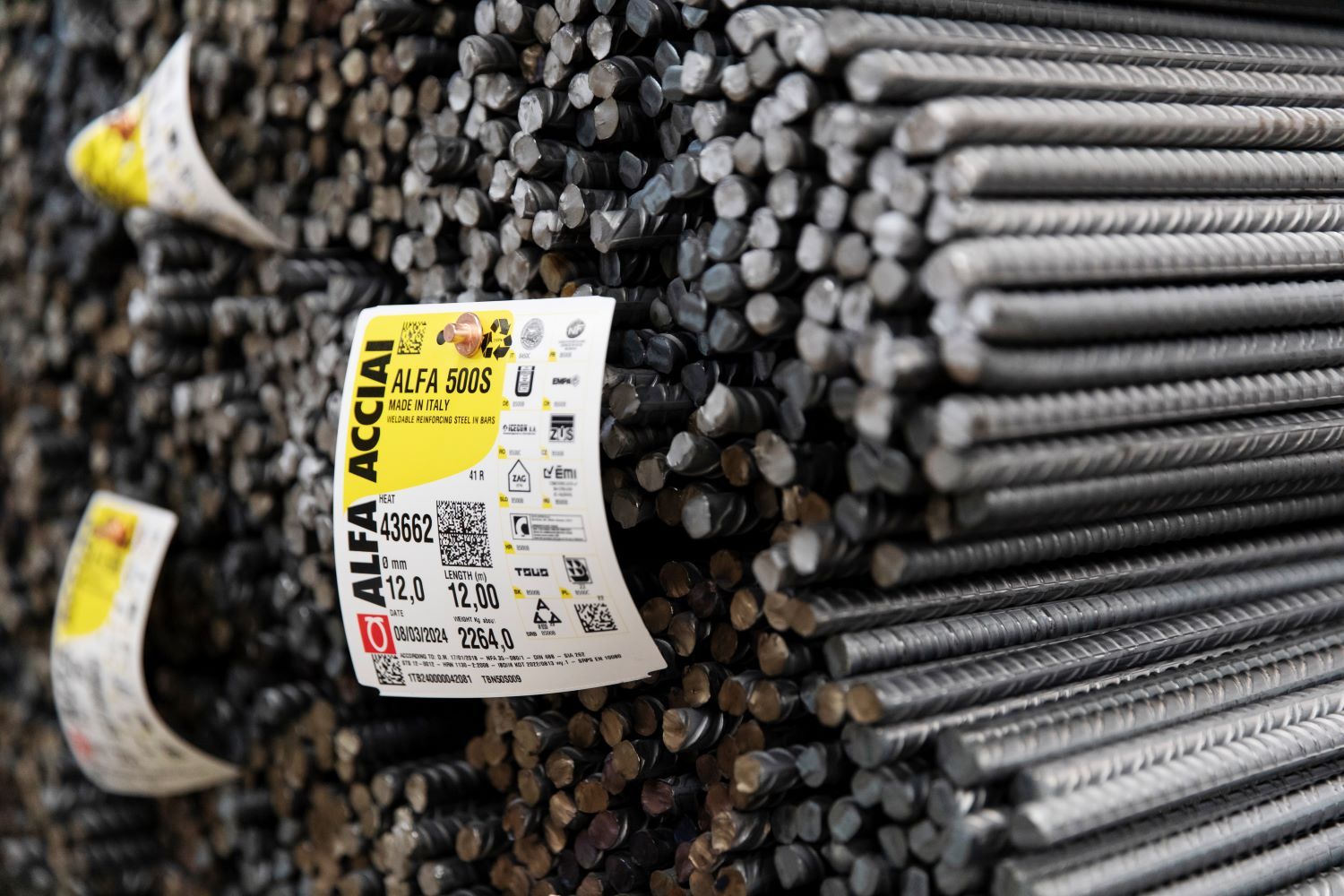

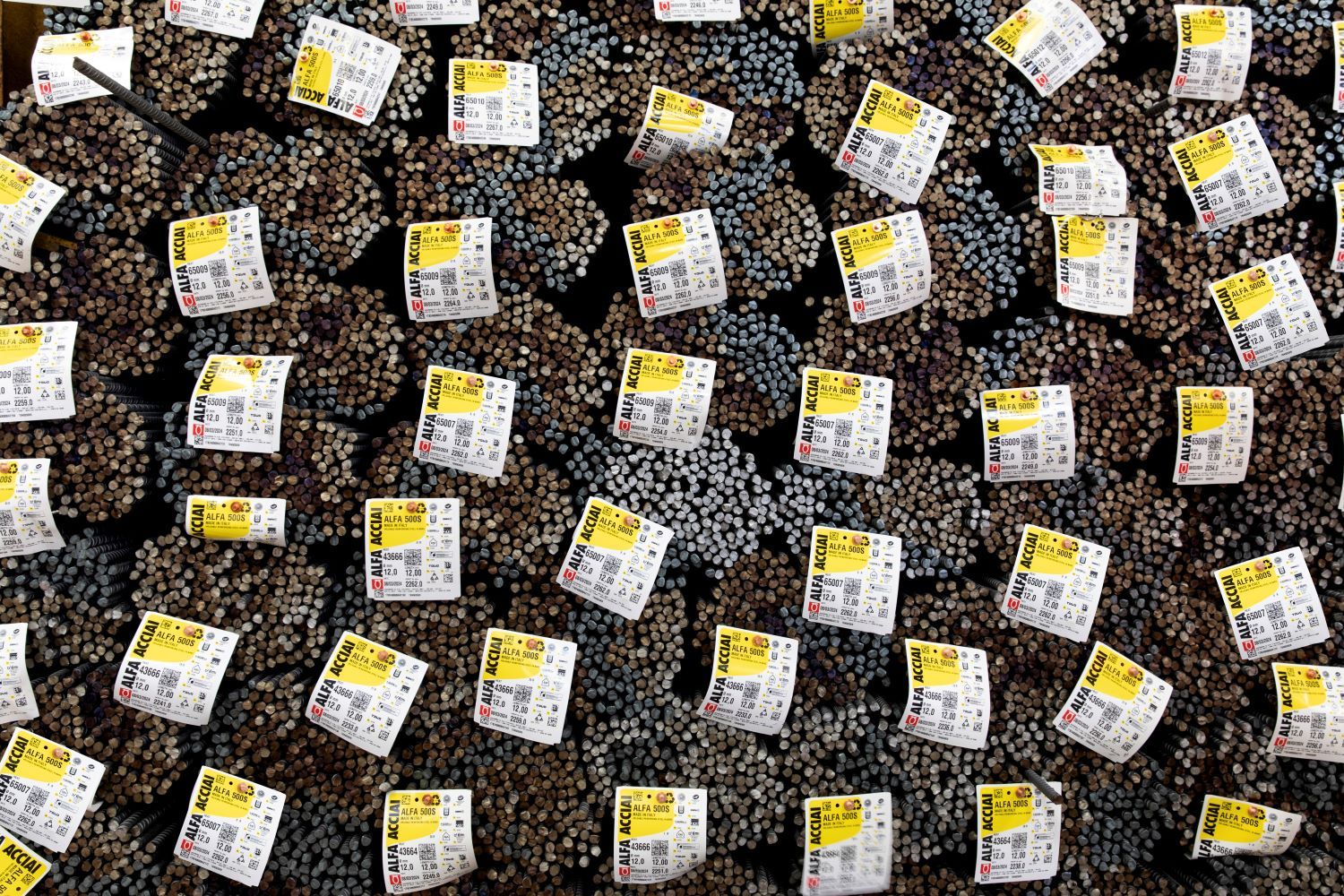

Each bundle is identified with a metal or plasticized label showing the following details:

Company logo
Heat number
Diameter
Steel grade
Date of production
Reference standards
Brand name

Trade names

ALFA 500 S

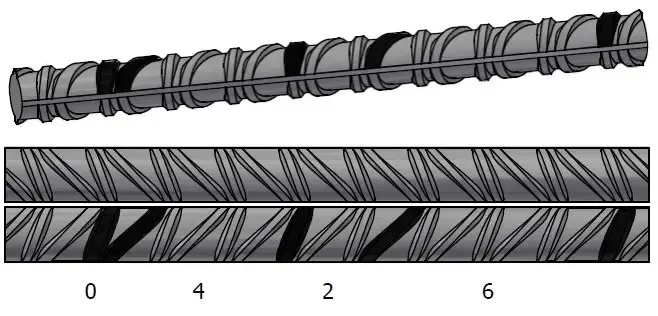

Rolling marking

Qualifications and compliance with standards

Qualification / Country	Standard	Grade	Qualification
ITALY	D.M. 17/01/2018	B 450 C
FRANCE	NFA 35080-1	B 500 B
GERMANY	DIN 488	B 500 B
GREECE	ELOT 1421-3	B 500 C
ISRAEL	IS 4466	S400
PORTUGAL	LNEC E450	A 500 NR
UNITED KINGDOM	BS 4449	B 500 B
CZECH REP.	DIN 488	B 500 B
ROMANIA	DIN 488	B 500 C
SLOVAKIA	DIN 488	B 500 B
SLOVENIA	SIST EN 10080	B 500 B
SPAIN	UNE 36068	B 500 S
SWITZERLAND	SIA 262	B 500 B
HUNGARY	DIN 488	B 500 B - B 500 C
USA	ASTM A615	GRADO 60 / 40
CROATIA	DIN 488	B 500 B
POLAND	IBDIM-KOT-2022/0813	B 500 C

Mechanical features

Standard

Grade

Re - Yield Strength N/mm ²

Rm - Tensile Strength N/mm ²

Rm/Re

Specific Re/Re

Agt %

A10 %

D.M. 17/01/2018	B 450 C	≥ 450	≥ 540	≥ 1,15 ≤ 1,35	≤ 1,25	≥ 7,5
NFA 35080-1	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
SIA 262	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
DIN 488	B 500 B (Bst 500 S)	≥ 500		≥ 1,08	≤ 1,30	≥ 5
DIN 488	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
ELOT 1421-3	B 500 C	≥ 500		≥ 1,15≤ 1,35	≤ 1,25	≥ 7,5
UNE 36068	B 500 S	≥ 500		≥ 1,08	≤ 1,30	≥ 5
BS 4449	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
LNEC E450	A 500 NR	≥ 500		≥ 1,08	≤ 1,30	≥ 5
SIST EN 10080	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
ASTM A615	GR. 60	≥ 420	≥ 620	≥ 1,10			≥ 9
IS 4466	S 400	≥ 400	≥ 500	≥ 1,25			≥ 12

* Characteristic values

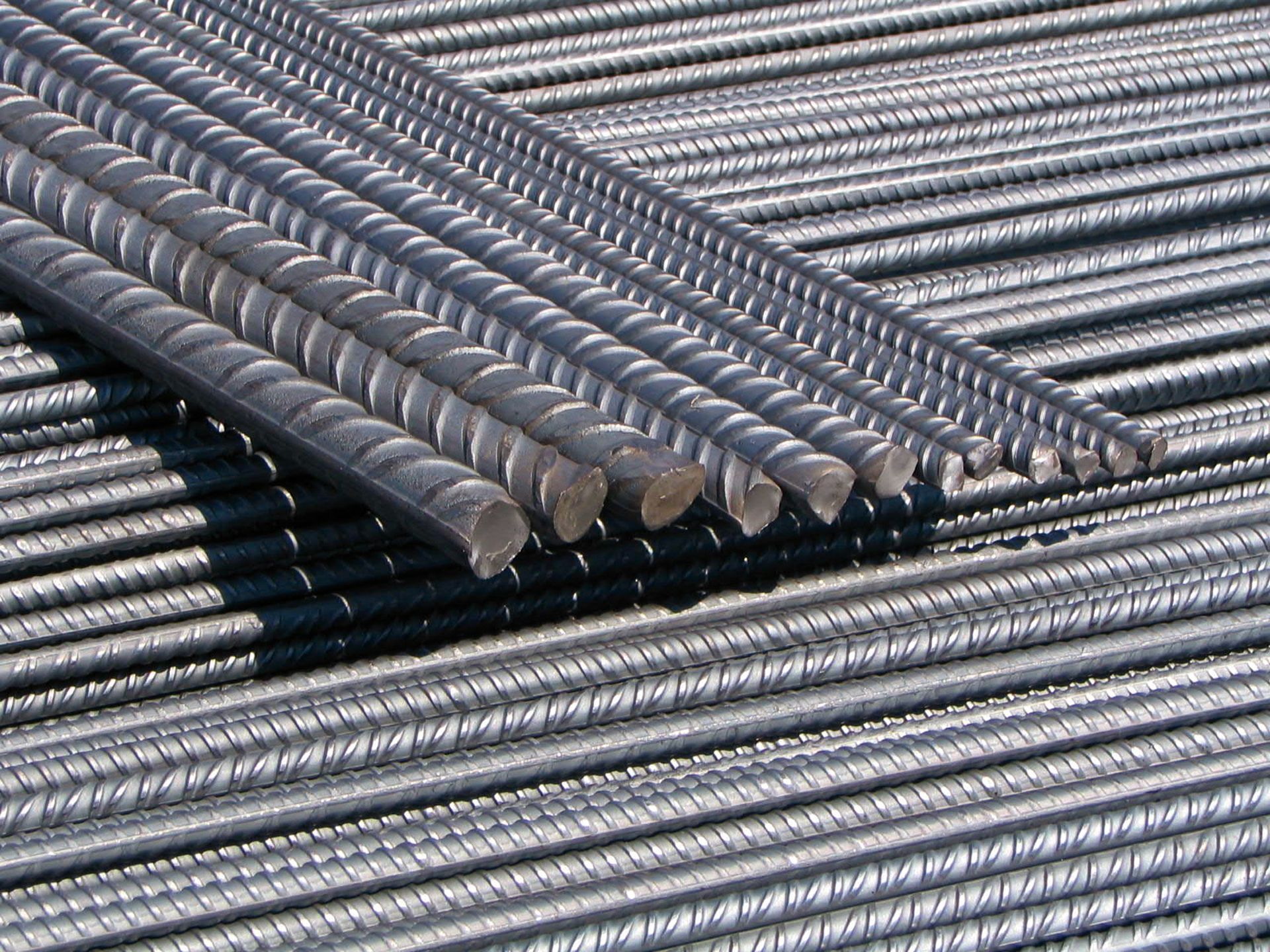

Trade names

ALFA 550 S

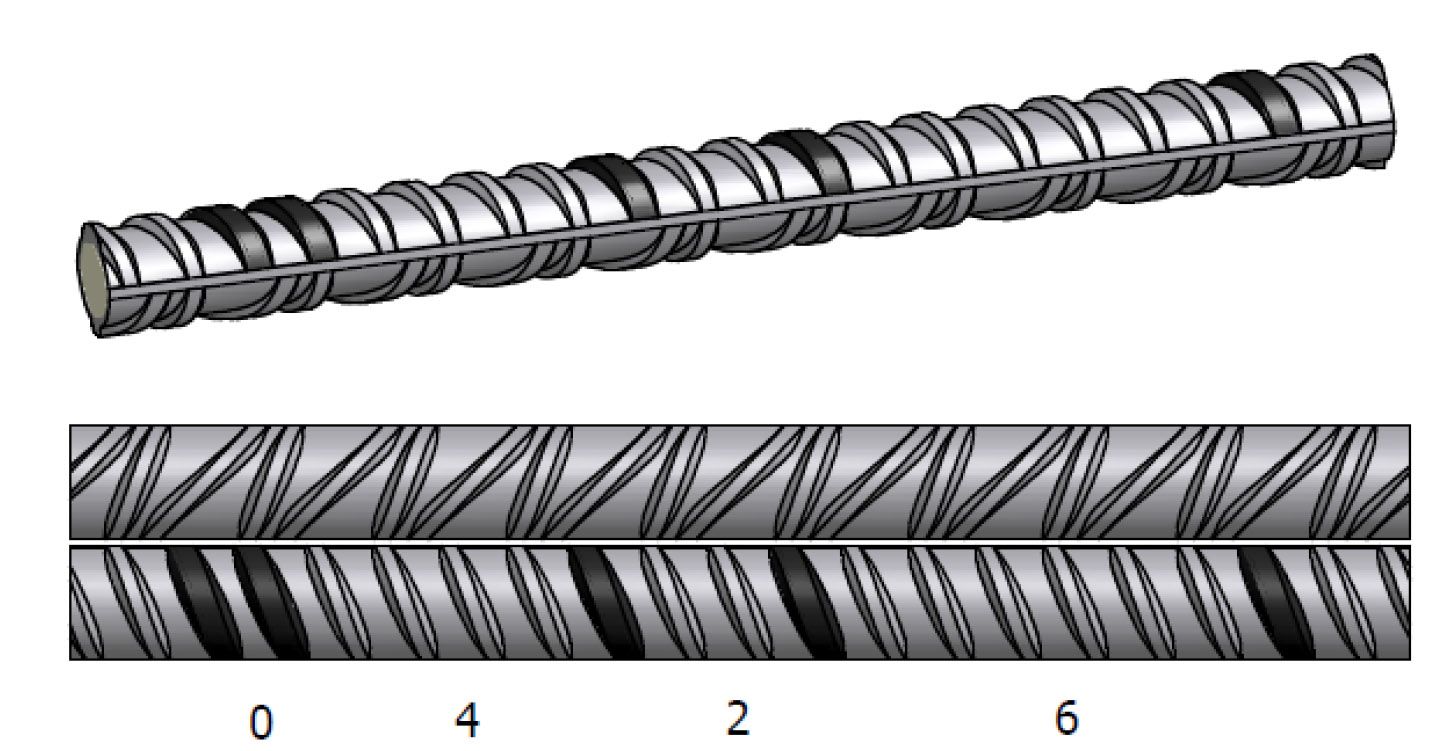

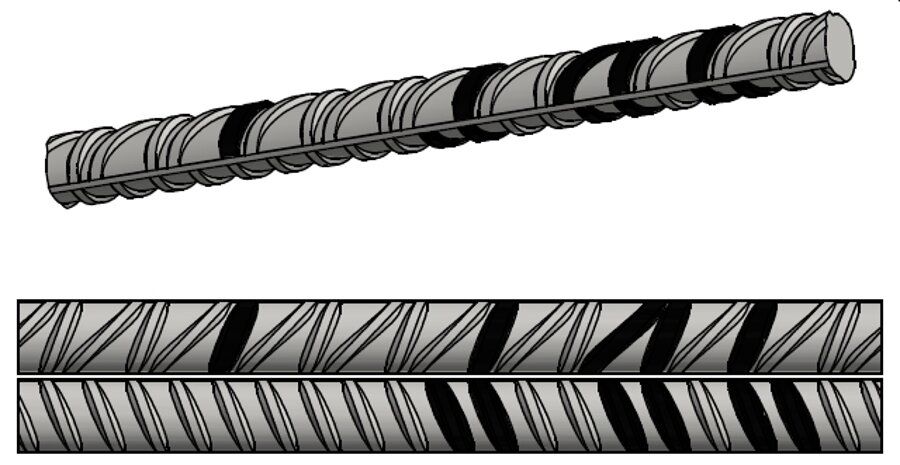

Rolling marking

Qualifications and compliance with standards

Qualification / Country	Standard	Grade	Qualification
AUSTRIA	ÖNORM B 4707	B 550 B

Mechanical features

Standard

Grade

Re - Yield Strength N/mm ²

Rm - Tensile Strength N/mm ²

Rm/Re

Specific Re/Re

Agt %

A10 %

ÖNORM B 4707

B 550 B

≥ 550

≥ 1,08

≤ 1,30

≥ 5

* Characteristic values

Sales Organisation - Alfa Acciai

Country

Sales agent

Address

Telephone

Mail

Germany, Switzerland	Monsider SA	Via Ciossèt 2, 6743 Bodio, Switzerland	+41 91 8809030	stahl@monsider.ch
France	Cesider SAS	6, Avenue René Froger, 05100 Briancon, France	+33 4 92 212914	info@cesider.fr
Austria	Steelmex SAS	Via Tosi 4, 20900 Monza, Italy	+39 039 2020156	info@steelmexsas.it
Slovenia, Croatia	Siviera doo	Vrtojba, Mednarodni prehod 1, 5290 Sempeter pri Gorici, Slovenija	+386 82051188	info@siviera.si
Romania	Saverio Frisardi PFA	Blvd Lacul Tei, nr 1 - 3, 020371 Bucharest, Romania	+40 723500704	saverio@frisardi.biz
Greece, Cyprus	Cotsis SA	81-83, Evelpidon Sr., 1382 Athens, Greece	+30 2108257360	phcotsis@cotsis.gr

For the others countries please contact Mr UBALDO DRAGANI

Phone: +39 030 23911 / E-mail: u.dragani@alfaacciai.it

Range of dimensions

Diameters: 8-32 mm
Length: 6-14 m

Weight and packaging

Bundle weight:

12 m ~ 2400 kg
6 m ~ 1300 kg

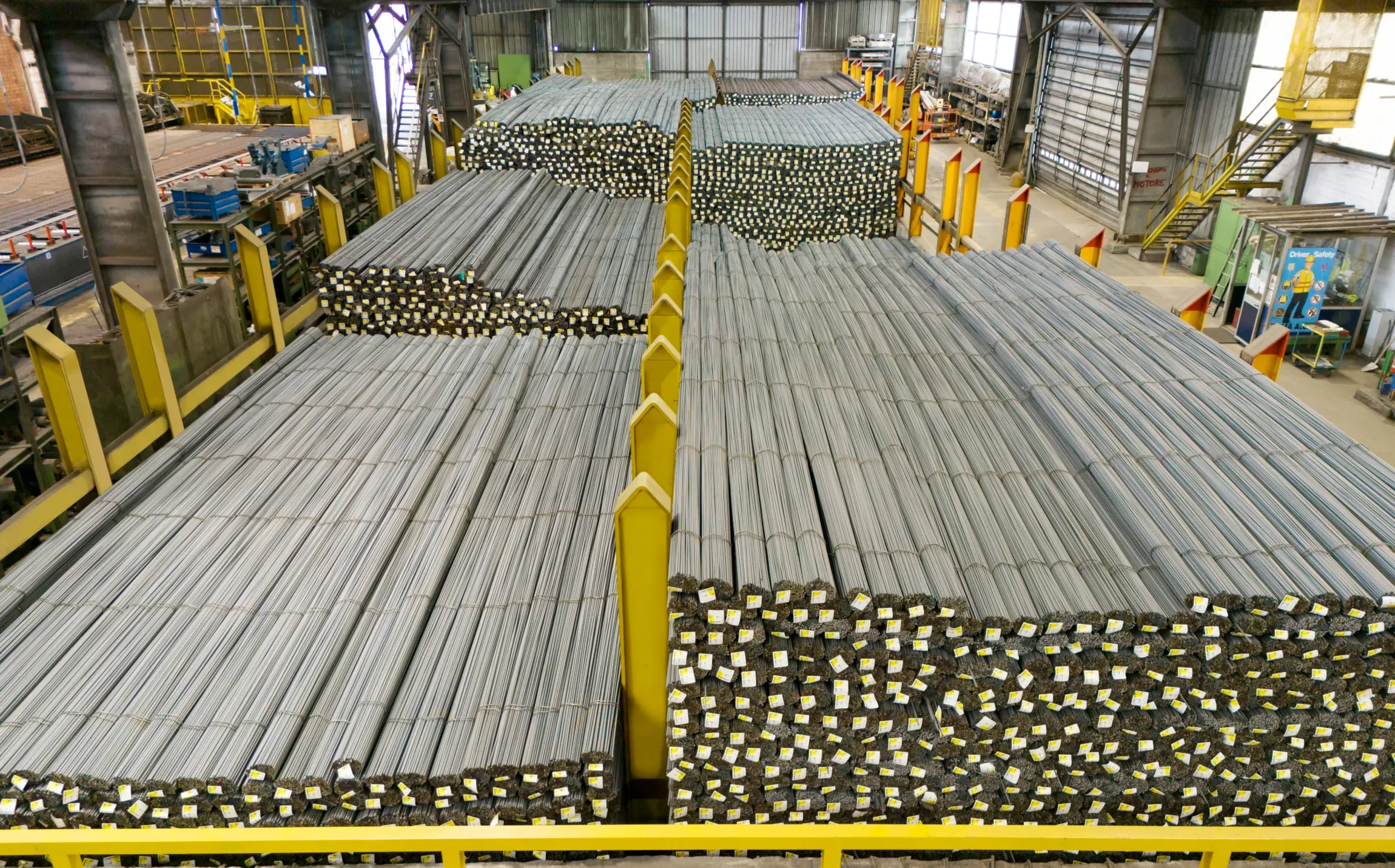

Packaging:

Bars packed in bundles of 6 to 15 m

Bundle length:

< 9 m / fastened in 5 positions
9 to 12 m / fastened in 7 positions
< 12 m / fastened in 9 positions

* Double fastening with 7 mm-diameter wire rod

Labelling

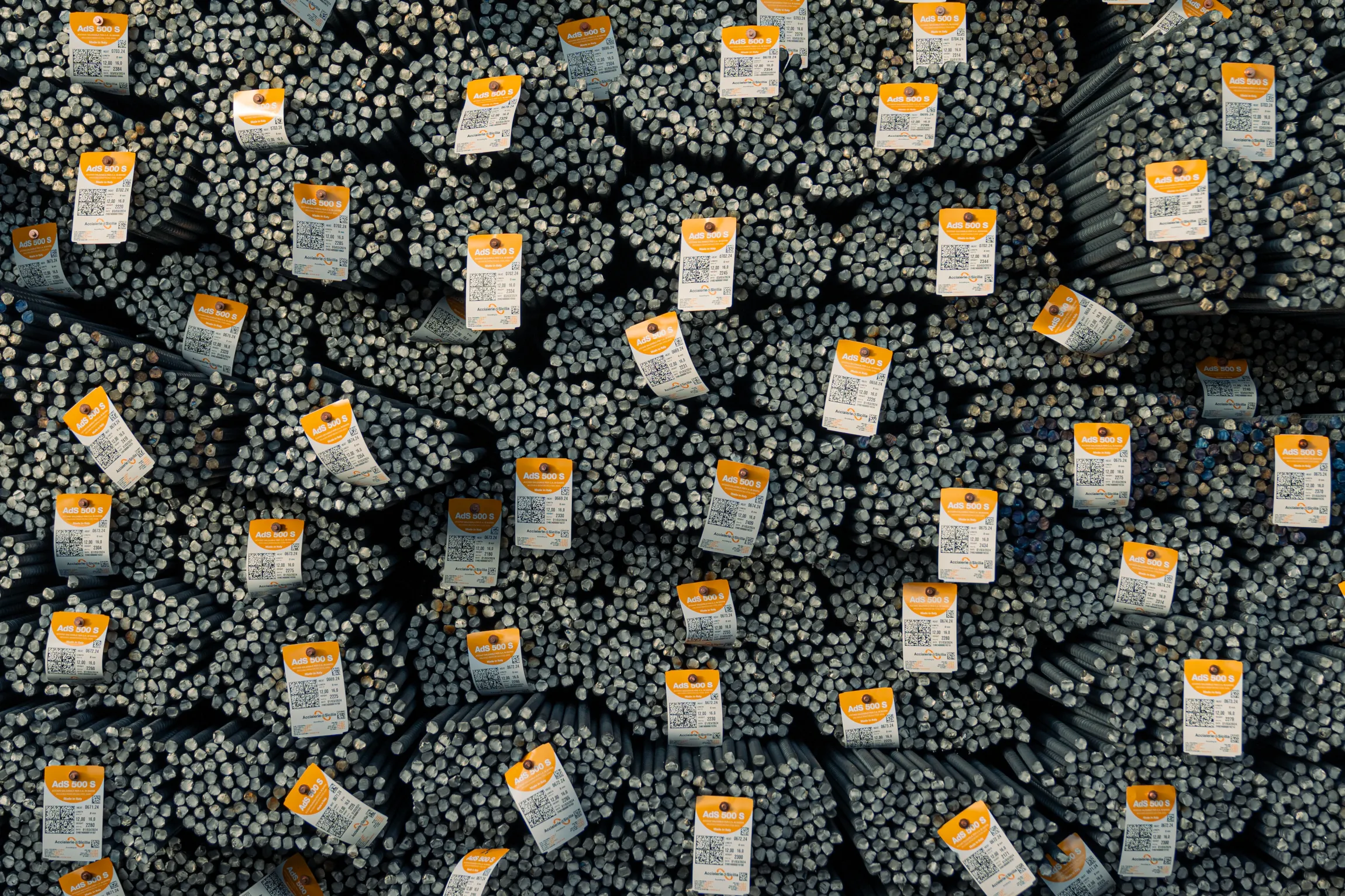

Each bundle is identified with a plasticized label showing the following details:

Company logo
Heat number
Diameter
Steel grade
Date of production
Reference standards
Brand name

Trade names

B 450C S

Rolling marking

Qualifications and compliance with standards

Qualification / Country	Standard	Grade	Qualification
Italy	D.M. 17/01/2018	B 450 C

Mechanical features

Standard

Grade

Re - Yield Strength N/mm ²

Rm - Tensile Strength N/mm ²

Rm/Re

Specific Re/Re

Agt %

D.M. 17/01/2018

B 450 C

≥ 450

≥ 540

≥ 1,15≤ 1.35

≤ 1,25

≥ 7,5

* Valori caratteristici

Trade names

B 500 C

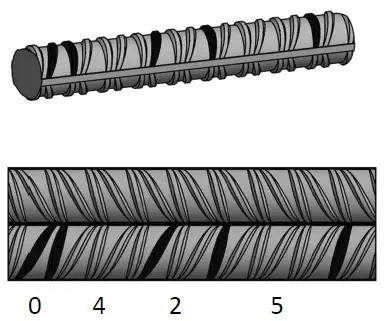

Rolling marking

Qualifications and compliance with standards

Qualification / Country	Standard	Grade	Qualification
USA	ASTM A615	GRADO 60
GERMANY	DIN 488	B 500 B
ROMANIA	DIN 488	B 500 B (Bst 500 S)
GRECIA	ELOT 1421-3	B 500 C
BULGARIA	018-НУРВСПСПБ-069	B 500 C

Mechanical features

Standard

Grade

Re - Yield Strength N/mm ²

Rm - Tensile Strength N/mm ²

Rm/Re

Specific Re/Re

Agt %

A5 %

SIA 262	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
DIN 488	Bst 500 S	≥ 500		≥ 1,08	≤ 1,30	≥ 5
DIN 488	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
ELOT 1421-3	B 500 C	≥ 500		≥ 1,15≤ 1,35	≤ 1,25	≥ 7,5
UNE 36065	B 500 C	≥ 500	≥ 575	≥ 1,15≤ 1,35	≤ 1,25	≥ 8	≥ 16
BS 4449	B 500 C	≥ 500		≥ 1,15≤ 1,35	≤ 1,25	≥ 7,5
LNEC E 460	A 500 NR SD	≥ 500		≥ 1,15≤ 1,35	≤ 1,25	≥ 8
ASTM A615	GR. 60	≥ 420	≥ 620	≥ 1,10
NFA 35016-1	Fe 500-3 - B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
NFA 35080-1	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5

* Valori caratteristici
