Recoiled Wire, Welding Steel in Coils for the Reinforcement of Concrete

Recoiled wire

Weldable, sustainable reinforcing steel featuring improved bonding and high ductility, low carbon contents, packaged in coils, hot rolled and cold stretched.

Product characteristics

Excellent uncoiling, even at high speed, as the result of compact packaging with coil-on-coil winding;
Increased output in t/h thanks to reduced machine downtimes for loading and coil format changeover;
Reduced production costs due to less waste;
Compatibility with all welding machines;
Optimized logistics – product high density contributes to reduce handling, transport and storage costs;
Improved bonding – excellent even after straightening;
No axial torsion prevents bar rotation during straightening thus ensuring perfectly straight;
Reduced surface oxidation, giving greater weight yield and enhanced cleanliness;
No welds.

Distinctive elements

Optimisation of production parameters in view of obtaining all products in class C - high ductility, guaranteeing:

Optimal mechanical properties for seismic and other applications;
Less production energy required;
Reduced wear of straightening rollers on pre-bending machines;
ICMQ ECO sustainability label;
LEED credits;
Recycled content certification.

Chemical composition

max. C %	max. P %	max. S %	max. Cu %	max. N %	max. Ceq
0,22	0,050	0,050	0,80	0,012	0,50
(0,24)	(0,055)	(0,055)	(0,85)	(0,014)	(0,52)

The figures in brackets refer to product analysis

Range of dimensions

Diameters: 6-16 mm

Weight and packaging

Coil weight:

~ 2500 Kg
~ 3000 Kg
~ 5000 Kg

Packaging:

Coils strapped in 4 positions

Coil dimensions:

Ø int. 600 ÷ 700 mm
Ø ext. 1100 ÷ 1200 mm
height 800 - 1000 mm

Labelling

Each coil is identified with a plasticized label showing the following details:

Company logo
Heat number
Diameter
Steel grade
Date of production
Reference standards
Brand name

Trade names

ALFA RB

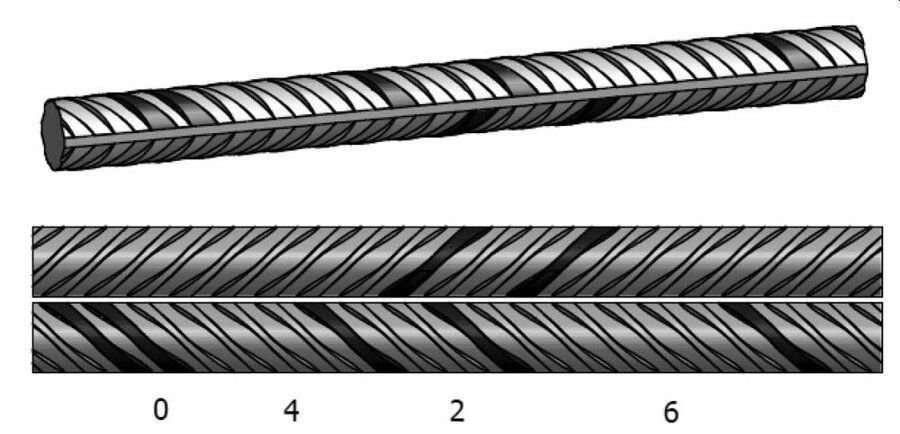

Rolling marking

Qualifications and compliance with standards

Qualification / Country	Standard	Grade	Qualification
ITALY	D.M. 17/01/2018	B 450 C
GERMANY	DIN 488	B 500 B
SWITZERLAND	SIA 262	B 500 B
FRANCE	NFA 35080-1	B 500 B
SLOVENIA	SIST EN 10080	B 500 B

Mechanical features

The standardisation of the production process made it possible to obtain the homogenisation and repeatability of the mechanical characteristics.
The high ductility of the product is expressed by the following parameters:

Optimised tensile strength/yield stress ratio at the minimum and maximum values set out by design standards;
High elongation at maximum AGT load;
A guaranteed yield stress value with limited maximum value.

Standard

Grade

Re - Yield Strength N/mm ²

Rm - Tensile Strength N/mm ²

Rm/Re

Specific Re/Re

Agt %

A5 %

D.M. 17/01/2018	B 450 C	≥ 450	≥ 540	≥ 1,15≤ 1,35	≤ 1,25	≥ 7,5
DIN 488	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
SIA 262	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
NFA 35080-1	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5

* Characteristic values

Geometrical features

Ø mm	fR	fR DIN 488
6	≥ 0,035	≥ 0,045
8	≥ 0,042	≥ 0,052
10	≥ 0,042	≥ 0,060
12	≥ 0,042	≥ 0,064

Trade names

ALFA RB 55

Rolling marking

Qualifications and compliance with standards

Qualification / Country	Standard	Grade	Qualification
AUSTRIA	ÖNORM B 4707	B 550 B

Mechanical features

Optimised tensile strength/yield stress ratio at the minimum and maximum values set out by design standards;
High elongation at maximum AGT load;
A guaranteed yield stress value with limited maximum value.

Standard

Grade

Re - Yield Strength N/mm ²

Rm - Tensile Strength N/mm ²

Rm/Re

Specific Re/Re

Agt %

A5 %

ÖNORM B 4707

B 550 B

≥ 550

≥ 1,08

≤ 1,30

≥ 5

* Characteristic values

Geometrical features

Ø mm	fR
8	≥ 0,040
