Quality Wire Rod made of low/medium-carbon steel by Alfa Acciai

Wire rod

Quality wire rod made of low/medium-carbon steel for cold rolling and drawing.

Product characteristics

Various grades are produced for the following applications:

Drawn wires for general use;
Thin drawn wires;
Wire for galvanisation, chrome-plating and nickelplating;
Enamelled wire;
Cold-rolled strip and sections;
Ribbed wire for welded mesh fencing and lattices.

Distinctive elements

Optimised surface oxidation for all types of picking;
Coil shape suitable for high-speed uncoiling;
Wide range of grades and diameters always available;
Recycled content certification.

Range of dimensions

Diameters: 5,5 - 6 - 6,5 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16

Weight and packaging

Bundle weight:

~ 1450 Kg
Wire rod dimensions and tolerances
to UNI EN ISO 10017

Packaging:

Matassa legata su 4 posizioni

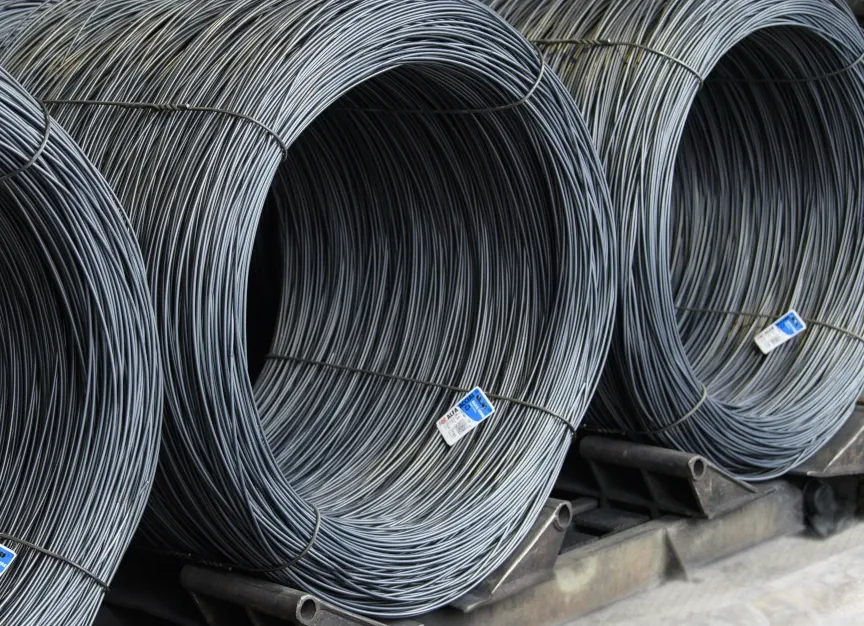

Bundle size:

Ø int. 850 ÷ 900 mm
Ø ext. 1100 ÷ 1200 mm
height 1100 - 1200 mm

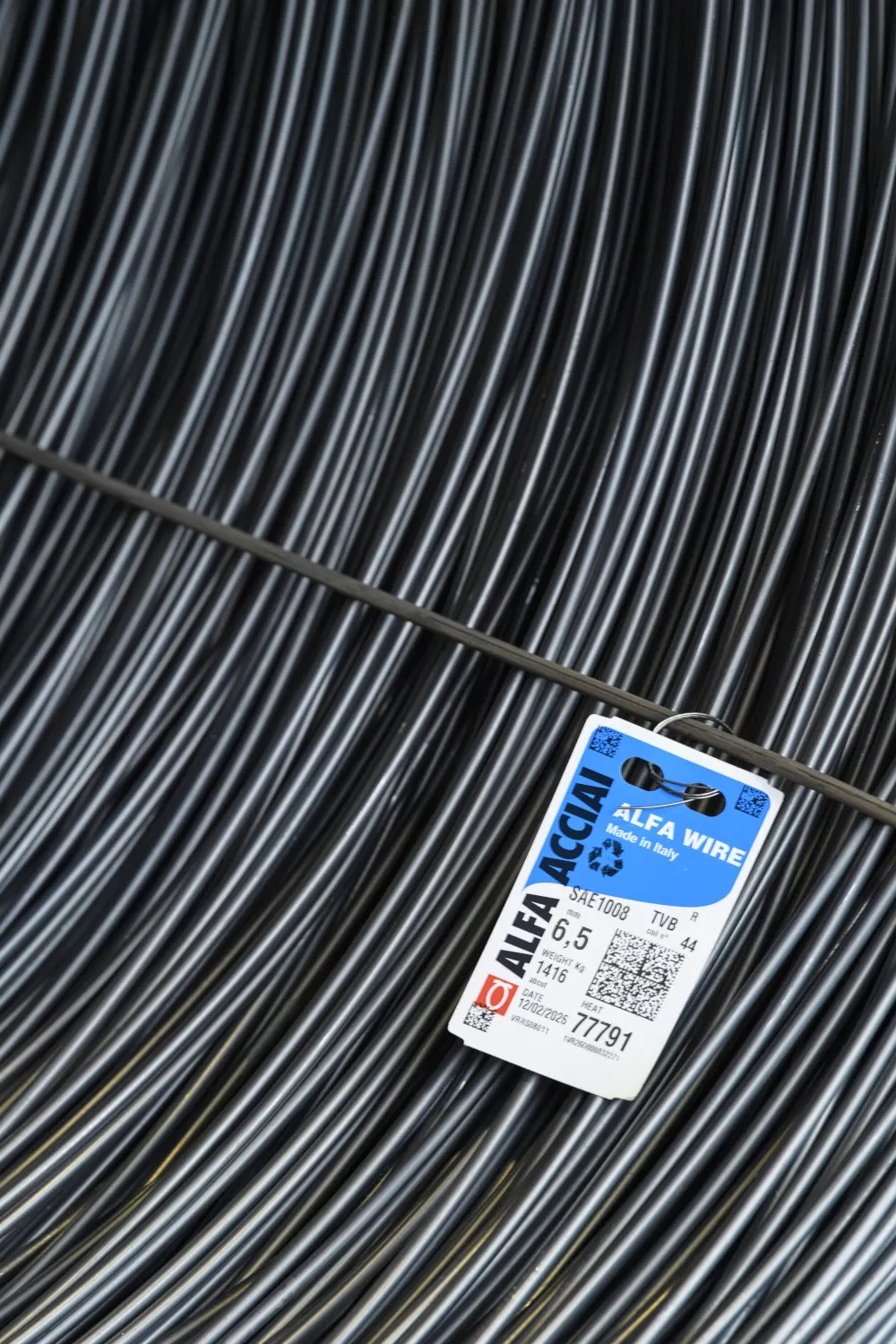

Labelling

Each bundle is identified by a label showing:

Product nominal diameter
Steel grade
Heat no

Trade names

A34

Chemical composition

C	Mn	Si	P	S	Cu
≤ 0,07	≤ 0,50	≤ 0,12	≤ 0,025	≤ 0,025	≤ 0,30

Mechanical features

Rm - Tensile Strength N/mm ²

A5 %

Z %

≤ 430

≥ 35

≥ 70

Reference to national and international standards: UNI EN 10016
“Non-alloy steel wire rod for drawing and/or cold rolling”

Dimensional tolerances

Ø mm	Max. diametertolerances	Max. roundnesstolerances
5,5 - 6 - 7 - 8	± 0,30	0,48
9 - 10 - 11 - 12 - 13 - 14	± 0,40	0,64

Trade names

A34L

Chemical composition

C	Mn	Si	P	S	Cu
≤ 0,07	≤ 0,50	≤ 0,15	≤ 0,025	≤ 0,025	≤ 0,30

Mechanical features

Rm - Tensile Strength N/mm ²

A5 %

Z %

≤ 430

≥ 35

≥ 70

Reference to national and international standards: UNI EN 10016
“Non-alloy steel wire rod for drawing and/or cold rolling”

Dimensional tolerances

Ø mm	Max. diametertolerances	Max. roundnesstolerances
5,5 - 6 - 7 - 8	± 0,30	0,48
9 - 10 - 11 - 12 - 13 - 14	± 0,40	0,64

Trade names

A34B

Chemical composition

	C	Mn	Si	P	S	Cu	B
Min Max	≤ 0,07	≤ 0,50	≤ 0,12	≤ 0,025	≤ 0,025	≤ 0,30	0,0030,006

Mechanical features

Rm - Tensile Strength N/mm ²

A5 %

Z %

≤ 400

≥ 40

≥ 75

Reference to national and international standards: UNI EN 10016
“Non-alloy steel wire rod for drawing and/or cold rolling”

Dimensional tolerances

Ø mm	Max. diametertolerances	Max. roundnesstolerances
5,5 - 6 - 7 - 8	± 0,30	0,48
9 - 10 - 11 - 12 - 13 - 14	± 0,40	0,64

Trade names

Chemical composition

	C	Mn	Si	P	S	Cu
Min Max	0,060,09	0,450,60	0,150,25	≤ 0,030	≤ 0,030	≤ 0,30

Mechanical features

Rm - Tensile Strength N/mm ²

A5 %

Z %

≤ 460

≥ 35

≥ 70

Reference to national and international standards: UNI EN 10016
“Non-alloy steel wire rod for drawing and/or cold rolling”

Dimensional tolerances

Ø mm	Max. diametertolerances	Max. roundnesstolerances
5,5 - 6 - 7 - 8	± 0,30	0,48
9 - 10 - 11 - 12 - 13 - 14	± 0,40	0,64

Trade names

C10

Chemical composition

	C	Mn	Si	P	S	Cu
Min Max	0,080,12	0,450,60	0,150,25	≤ 0,030	≤ 0,030	≤ 0,30

Mechanical features

Rm - Tensile Strength N/mm ²

A5 %

Z %

≤ 480

≥ 35

≥ 70

Reference to national and international standards: UNI EN 10016
“Non-alloy steel wire rod for drawing and/or cold rolling”

Dimensional tolerances

Ø mm	Max. diametertolerances	Max. roundnesstolerances
5,5 - 6 - 7 - 8	± 0,30	0,48
9 - 10 - 11 - 12 - 13 - 14	± 0,40	0,64

Trade names

C15

Chemical composition

	C	Mn	Si	P	S	Cu
Min Max	0,130,17	0,450,60	0,150,25	≤ 0,030	≤ 0,030	≤ 0,30

Mechanical features

Rm - Tensile Strength N/mm ²

A5 %

Z %

≤ 530

≥ 35

≥ 70

Reference to national and international standards: UNI EN 10016
“Non-alloy steel wire rod for drawing and/or cold rolling”

Dimensional tolerances

Ø mm	Max. diametertolerances	Max. roundnesstolerances
5,5 - 6 - 7 - 8	± 0,30	0,48
9 - 10 - 11 - 12 - 13 - 14	± 0,40	0,64

Trade names

A5ZN

Chemical composition

	C	Mn	Si	P	S	Cu	B
Min Max	≤ 0,07	≤ 0,50	0,150,50	0,20	≤ 0,025	≤ 0,25	0,0030,008

Mechanical features

Rm - Tensile Strength N/mm ²

A5 %

Z %

≤ 400

≥ 38

≥ 78

Reference to national and international standards: UNI EN 10016
“Non-alloy steel wire rod for drawing and/or cold rolling”

Dimensional tolerances

Ø mm	Max. diametertolerances	Max. roundnesstolerances
5,5 - 6 - 7 - 8 - 9	± 0,30	0,48
10 - 11 - 12 - 13 - 14 - 15 - 16	± 0,40	0,64

Trade names

A6ZN

Chemical composition

	C	Mn	Si	P	S	Cu	B
Min Max	≤ 0,07	≤ 0,60	0,150,25	≤ 0,030	≤ 0,030	≤ 0,35

Mechanical features

Rm - Tensile Strength N/mm ²

A5 %

Z %

≤ 450

≥ 35

≥ 70

Reference to national and international standards: UNI EN 10016
“Non-alloy steel wire rod for drawing and/or cold rolling”

Dimensional tolerances

Ø mm	Max. diametertolerances	Max. roundnesstolerances
5,5 - 6 - 7 - 8	± 0,30	0,48
9 - 10 - 11 - 12 - 13 - 14	± 0,40	0,64

Trade names

SAE1006

Chemical composition

	C	Mn	Si	P	S	Cu
Min Max	≤ 0,08	0,250,45	≤ 0,20	≤ 0,040	≤ 0,050	≤ 0,60

Mechanical features

Rm - Tensile Strength N/mm ²

A5 %

Z %

≤ 420

≥ 35

≥ 70

Reference to national and international standards: ASTM A 510 M

Dimensional tolerances

Ø mm	Max. diametertolerances	Max. roundnesstolerances
5,5 - 6 - 7 - 8	± 0,30	0,48
9 - 10 - 11 - 12 - 13 - 14	± 0,40	0,64

Trade names

SAE1008

Chemical composition

	C	Mn	Si	P	S	Cu
Min Max	0,060,10	0,300,50	≤ 0,20	≤ 0,040	≤ 0,050	≤ 0,60

Mechanical features

Rm - Tensile Strength N/mm ²

A5 %

Z %

≥ 430

≥ 30

≥ 65

Reference to national and international standards : ASTM A 510 M

Dimensional tolerances

Ø mm	Max. diametertolerances	Max. roundnesstolerances
5,5 - 6 - 7 - 8	± 0,30	0,48
9 - 10 - 11 - 12 - 13 - 14	± 0,40	0,64

Trade names

SAE1010

Chemical composition

	C	Mn	Si	P	S	Cu
Min Max	0,080,13	0,300,60	≤ 0,20	≤ 0,040	≤ 0,050	≤ 0,60

Mechanical features

Rm - Tensile Strength N/mm ²

A5 %

Z %

≥ 450

≥ 35

≥ 70

Reference to national and international standards: ASTM A 510 M

Dimensional tolerances

Ø mm	Max. diametertolerances	Max. roundnesstolerances
5,5 - 6 - 7 - 8	± 0,30	0,48

Trade names

A37

Chemical composition

	C	Mn	Si	P	S	Cu
Min Max	0,17	0,400,70	0,20	0,050	0,050

Dimensional tolerances

Ø mm	Max. tolerances diameter	Max. tolerances Roundness
5,5 - 6 - 7 - 8	± 0,30	0,48
9 - 10 - 11 - 12 - 13 - 14	± 0,40	0,64

Reference to national and international standards : NfF A 35 – 052

Trade names

AS1

Chemical composition

	C	Mn	Si	P	S	Cu
Min Max	0,070,12	0,400,60	0,050,10	≤ 0,020	≤ 0,025	≤ 0,15

Mechanical features

Rm - Tensile Strength N/mm ²

A5 %

Z %

≤ 440

≥ 35

≥ 70

Reference to national and international standards: AWS A5.18

Dimensional tolerances

Ø mm	Max. diametertolerances	Max. roundnesstolerances
5,5 - 6	± 0,30	0,48

Trade names

AS2

Chemical composition

	C	Mn	Si	P	S	Cu
Min Max	0,12	1,15	0,10	0,020	0,020	0,12

Dimensional tolerances

Ø mm	Max. tolerances diameter	Max. tolerances Roundness
5,5 - 6	± 0,30	0,48

Reference to national and international standards: AWS A5.18

Trade names

AS2Si

Chemical composition

	C	Mn	Si	P	S	Cu
Min Max	0,080,12	0,901,15	0,25	≤ 0,020	≤ 0,020	≤ 0,12

Dimensional tolerances

Ø mm	Max. tolerances diameter	Max. tolerances Roundness
5,5 - 6	± 0,30	0,48

Reference to national and international standards: AWS A5.18
