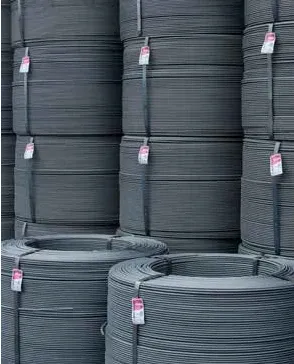

Spooled Coil by Alfa Acciai, Packaged in Coils

Spooled coil

Weldable, sustainable reinforcing steel featuring improved bonding and high ductility, low carbon contents, packaged in coils, available in the range of diameters 8-16 mm, hot rolled with in-line heat treatment (Tempcore).

Product characteristics

Excellent uncoiling, even at high speed, as the result of compact packaging with coil-on-coil winding;
Increased output in t/h thanks to reduced machine downtimes for loading and coil format changeover;
Reduced production costs due to less waste;
Compatibility with all welding machines;
Optimized logistics – product high density contributes to reduce handling, transport and storage costs;
Improved bonding – excellent even after straightening;
No axial torsion prevents bar rotation during straightening thus ensuring perfectly straight;
Reduced surface oxidation, giving greater weight yield and enhanced cleanliness;
No welds.

Distinctive elements

Optimisation of production parameters, in view of obtaining all products in class C - high ductility, guaranteeing:

Optimal mechanical properties for seismic and other applications;
Less production energy required;
Reduced wear of straightening rollers on pre-bending machines;
ICMQ ECO sustainability label;
LEED credits;
Recycled content certification.

Chemical composition

max. C %	max. P %	max. S %	max. Cu %	max. N %	max. Ceq
0,22	0,050	0,050	0,80	0,012	0,50
(0,24)	(0,055)	(0,055)	(0,85)	(0,014)	(0,52)

The figures in brackets refer to product analysis

Range of dimensions

Diameters: 8-16 mm

Weight and packaging

Spooled coil weight:

~ 3000 kg

Packaging:

Coils strapped in 4 positions

Coil dimensions:

Ø int. 700 mm
Ø ext. 1100 ÷ 1200 mm
Height 700 mm

Labelling

Each spool is identified with a plasticized label showing the following details:

Company logo
Heat number
Diameter
Steel grade
Date of production
Reference standards
Brand name

Trade names

ALFA 500 KS

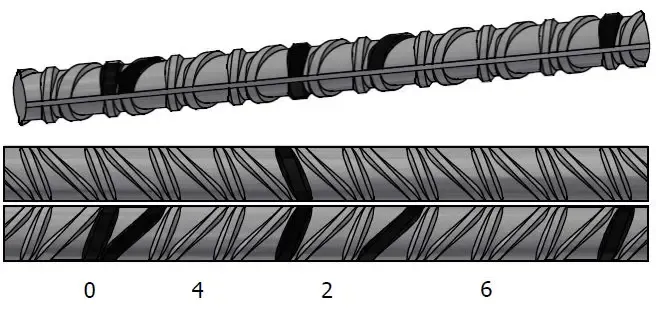

Rolling marking

Qualifications and compliance with standards

Qualification / Country	Standard	Grade	Qualification
ITALY	D.M. 17/01/2018	B 450 C
CROATIA	DIN 488	B 500 B
FRANCE	NFA 35080-1	B 500 B
GERMANY	DIN 488	B 500 B
ROMANIA	ST 009-2011	B 500 C
CZECH REP.	DIN 488	B 500 B
SWITZERLAND	SIA 262	B 500 C
GREECE	ELOT 1421-3	B 500 C
SPAIN	UNE 36068	B 500 S
UNITED KINGDOM	BS 4449	B 500 B
PORTUGAL	LNEC E450	A 500 NR
SLOVAKIA	DIN 488	B 500 B
SLOVENIA	SIST EN 10080	B 500 B
HUNGARY	DIN 488	B 500 B - B 500 C
USA	ASTM A615	GRADO 60 / 40
POLAND	IBDIM-KOT-2022/0813	B 500 C
SERBIA	SRPS EN 10080:2008	B 500 B

Mechanical features

Standard

Grade

Re - Yield Strength N/mm ²

Rm - Tensile Strength N/mm ²

Rm/Re

Specific Re/Re

Agt %

A5 %

D.M. 17/01/2018	B 450 C	≥ 450	≥ 540	≥ 1,15≤ 1,35	≤ 1,25	≥ 7,5
NFA 35080-1	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
SIA 262	B 500 C	≥ 500		≥ 1,15≤ 1,35	≤ 1,25	≥ 7,5
DIN 488	B 500 C	≥ 500		≥ 1,15≤ 1,35	≤ 1,25	≥ 7,5
DIN 488	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
ELOT 1421-3	B 500 C	≥ 500		≥ 1,15≤ 1,35	≤ 1,25	≥ 7,5
UNE 36068	B 500 S	≥ 500	≥ 550	≥ 1,05≥ 5	≤ 1,30	≥ 5
BS 4449	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
LNEC E450	A 500 NR	≥ 500	≥ 550	≥ 1,08≥ 5	≤ 1,25
SIST EN 10080	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
ASTM A615	GR. 60	≥ 420	≥ 620	≥ 1,10
IBDIM-KOT-2022/0813	B 500 C	≥ 500		≥ 1,15≤ 1,35	≤ 1,25	≥ 8
SRPS EN 10080:2008	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5

* Characteristic values

Geometrical features

Ø mm	fR	fR DIN 488
8	≥ 0,040	≥ 0,045
10	≥ 0,040	≥ 0,052
12	≥ 0,040	≥ 0,056
14	≥ 0,056	≥ 0,056
16	≥ 0,056	≥ 0,056
16	≥ 0,056	≥ 0,056

Trade names

ALFA 550

Rolling marking

Qualifications and compliance with standards

Qualification / Country	Standard	Grade	Qualification
AUSTRIA	ÖNORM B 4707	B 550 B

Mechanical features

Standard

Grade

Re - Yield Strength N/mm ²

Rm - Tensile Strength N/mm ²

Rm/Re

Specific Re/Re

Agt %

A5 %

ÖNORM B 4707

B 550 B

≥ 550

≥ 1,08

≤ 1,30

≥ 5

* Characteristic values

Geometrical features

Ø mm	fR
8	≥ 0,040

Sales Organisation - Alfa Acciai

Country

Sales agent

Address

Telephone

Mail

Germany, Switzerland	Monsider SA	Via Ciossèt 2, 6743 Bodio, Switzerland	+41 91 8809030	stahl@monsider.ch
France	Cesider SAS	6, Avenue René Froger, 05100 Briancon, France	+33 4 92 212914	info@cesider.fr
Austria	Steelmex SAS	Via Tosi 4, 20900 Monza, Italy	+39 039 2020156	info@steelmexsas.it
Slovenia, Croatia	Siviera doo	Vrtojba, Mednarodni prehod 1, 5290 Sempeter pri Gorici, Slovenija	+386 82051188	info@siviera.si
Romania	Saverio Frisardi PFA	Blvd Lacul Tei, nr 1 - 3, 020371 Bucharest, Romania	+40 723500704	saverio@frisardi.biz
Greece, Cyprus	Cotsis SA	81-83, Evelpidon Sr., 1382 Athens, Greece	+30 2108257360	phcotsis@cotsis.gr

For the others countries please contact Mr UBALDO DRAGANI

Phone: +39 030 23911 / E-mail: u.dragani@alfaacciai.it

Range of dimensions

Diameters: 8-16 mm

Weight and packaging

Spooled coil weight:

1450 kg

Packaging:

Coils fastened in 4 positions

Coil dimensions:

Ø int. 700 mm
Ø ext. 1100 ÷ 1200 mm
Height 700 mm

Labelling

Each spool is identified with a plasticized label showing the following details:

Company logo
Heat number
Diameter
Steel grade
Date of production
Reference standards
Brand name

Trade names

B 450 C S

Rolling marking

Qualifications and compliance with standards

Qualification / Country	Standard	Grade	Qualification
ITALY	D.M. 17/01/2018	B 450 C

Mechanical features

Standard

Grade

Re - Yield Strength N/mm ²

Rm - Tensile Strength N/mm ²

Rm/Re

Specific Re/Re

Agt %

A5 %

D.M. 17/01/2018

B 450 C

≥ 450

≥ 540

≥ 1,15≤ 1,35

≤ 1,25

≥ 7,5

* Valori caratteristici

Trade names

B 500 C

Rolling marking

Qualifications and compliance with standards

Qualification / Country	Standard	Grade	Qualification
ROMANIA	ST 009-2011	B 500 C
USA	ASTM A615	GRADO 60
GREECE	ELOT 1421-3	B 500 C
BULGARIA	BDS 9252	B 500 C

Mechanical features

Standard

Grade

Re - Yield Strength N/mm ²

Rm - Tensile Strength N/mm ²

Rm/Re

Specific Re/Re

Agt %

A5 %

ASTM A615	GR. 60	≥ 420	≥ 620	≥ 1,10
DIN 488	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
ELOT 1421-3	B 500 C	≥ 500		≥ 1,15≤ 1,35	≤ 1,25	≥ 7,5
UNE 36065	B 500 SD	≥ 500	≥ 575	≥ 1,15≤ 1,35	≤ 1,25	≥ 8
BS 4449	B 500 C	≥ 500		≥ 1,15≤ 1,35	≤ 1,25	≥ 7,5
SIA 262	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
DIN 488	Bst 550 S	≥ 500		≥ 1,08	≤ 1,30	≥ 5
NFA 35016-1	Fe 500-3 - B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5
NF A 35-080-2	B 500 B	≥ 500		≥ 1,08	≤ 1,30	≥ 5

* Valori caratteristici
